Stabi Ref 2


Stabi Ref was first introduced in 1992.

This is constructed from two plates, each plate being made from a sandwich construction of two 10 mm aluminium plates, separated by an acrylic plate clamped together with pre-stressed, non-magnetic, stainless steel screws. The turntable chassis (top plate) is suspended by large springs submerged in silicone oil, with a low resonance of 2.2 Hz, which dampens movements of the springs themselves. The main base (bottom plate) is supported by three aluminium and stainless steel spikes. The top plate is easily levelled by four knobs. When this plate is lifted (for transport) the silicone suspension reservoirs are automatically sealed.

Two motors in a diamond drive, power the subplatter, which has an inverted bearing with a ruby ball. Both ball and sliding ring have their own oil bath for lubrication and damping of any vibration within the bearing. The platter is also of a clamped sandwich construction, in order to combine the strength of aluminium (rigidity) and the damping properties of acrylic, which produces an exceptionally stable and no resonant support for records. The mat and special clamp are made in much the same way as the platter and further serve to control all vibration. The armboard also employs the sandwich construction design.

In 2009 we introduced new power supply called PS AC( PS REF 2). This power supply is the only difference between models Stabi Ref 2 and Stabi Ref .



Spare parts:

Stabi Ref & Ref2  various armboards
Stabi Ref & Ref2 various armboards
Stabi Ref 2 Power Supply- PS Ref 2  (since 2008)
Stabi Ref 2 Power Supply- PS Ref 2 (since 2008)
Stabi Ref  clamp
Stabi Ref clamp
Stabi Ref & Ref2 bearing oil
Stabi Ref & Ref2 bearing oil
Belt flat
Belt flat
PS Ref (1991-2008 )
PS Ref (1991-2008 )

Latest Reviews:

See for more reviews elswhere on our web

High& Style- Slovakia-2019

2019: AUDIOREVIEW JAN 2019 #405

Original:http://www.kuzma.si/media/uploads/files/STABI%20REF%2B4P%20AUDIO%20REVIEW%20190124

English: http://www.kuzma.si/media/uploads/files/AUDIOREVIEW%202019%20STABI%20REF%20EnglishFK.pdf

2018: The Absolute Sound #286:

Golden Ear Awards 2018: After 27 years still among the best turntables in the world! Dick Olsher


» See all other reviews

Product photos:

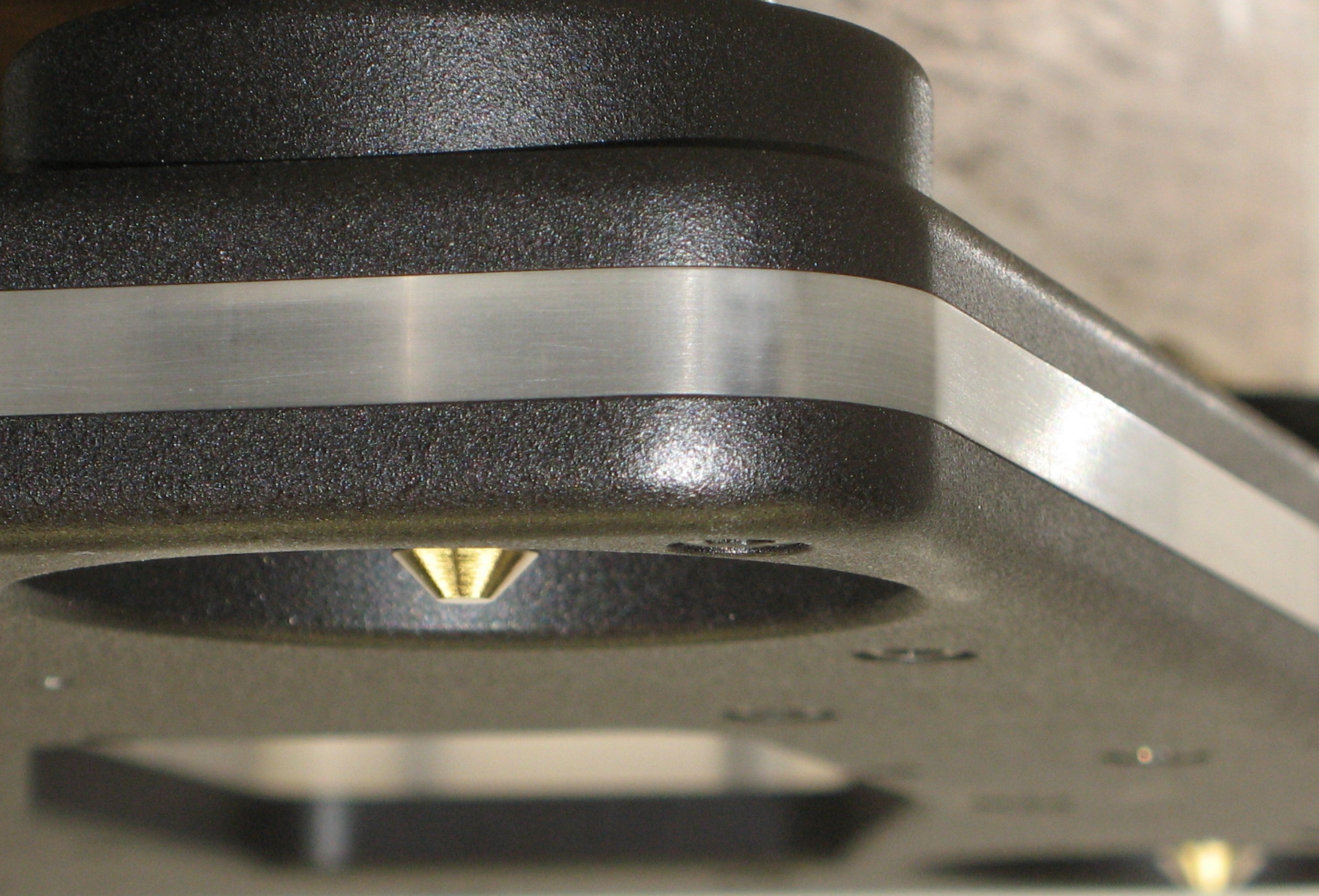

Stabi Ref top and lower chassis Stabi Ref suspension spike Stabi Ref damping tower Stabi Ref with Stogi Ref tonearm

Mass 40 Kg
Platter mass 8 Kg
Platter material Aluminium& acrylic
Bearing type Ruby ball- inverted with resin/textile material
Shaft diameter 16 mm
Drive Flat rubber belt
Chassis/Levelling Aluminium & acrylic/Yes
Turntable levelling No
Motors 2 pcs AC
External power supply Yes
Speeds 33,45 rpm
Armboard Yes
VTA adjustment Yes
No. of tonearms 1pc
Max tonearm’s cutout position 10”
Suspended Yes ( 2.2 Hz)
Dimensions 500x400x200 mm
140x60x400 mm ( PS)
Finishes Black
Clamp Yes
Mat Yes
Lid No
Accessories Oil, Allen keys
Options Various armboards,
