Stabi XL4 2008-2014


STABI XL 4 is upgraded version of Stabi XL 2 by using two extra motor towers and 4 belts. Both turntable versions are now supplied with new power supply as PS XL2 which generates better sine wave, allows fine speed precision adjustment.

Spare parts:

Stabi XL tower No.1( with VTA)
Stabi XL tower No.1( with VTA)
Stabi XL tower No.3 ( no  VTA )
Stabi XL tower No.3 ( no VTA )

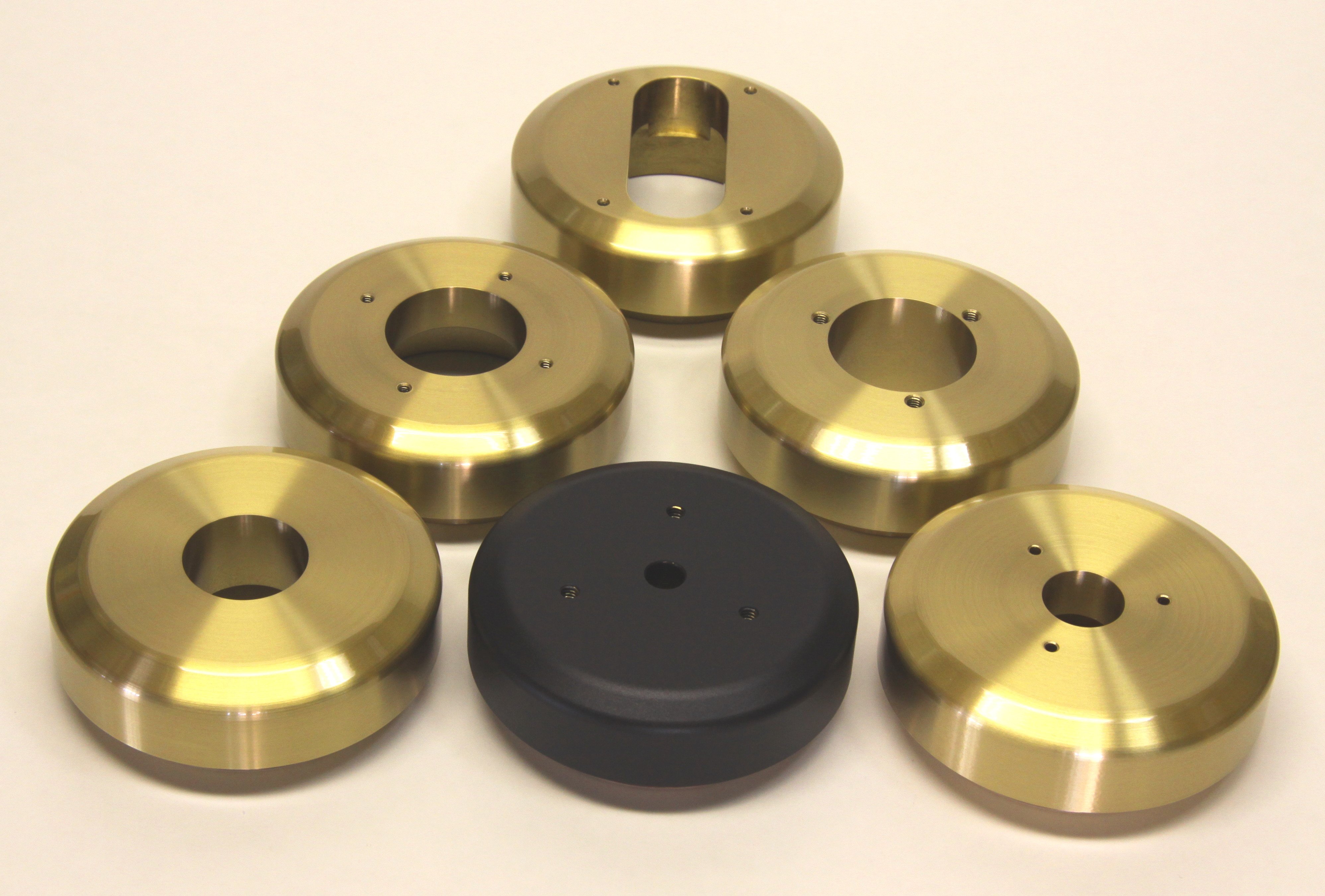

Stabi XL armbases
Stabi XL armbases
Stabi XL4 motors position
Stabi XL4 motors position
Stabi XL 4  motor kit supports
Stabi XL 4 motor kit supports
Stabi XL clamp-brass
Stabi XL clamp-brass
Stabi XL bearing oil
Stabi XL bearing oil

Product photos:

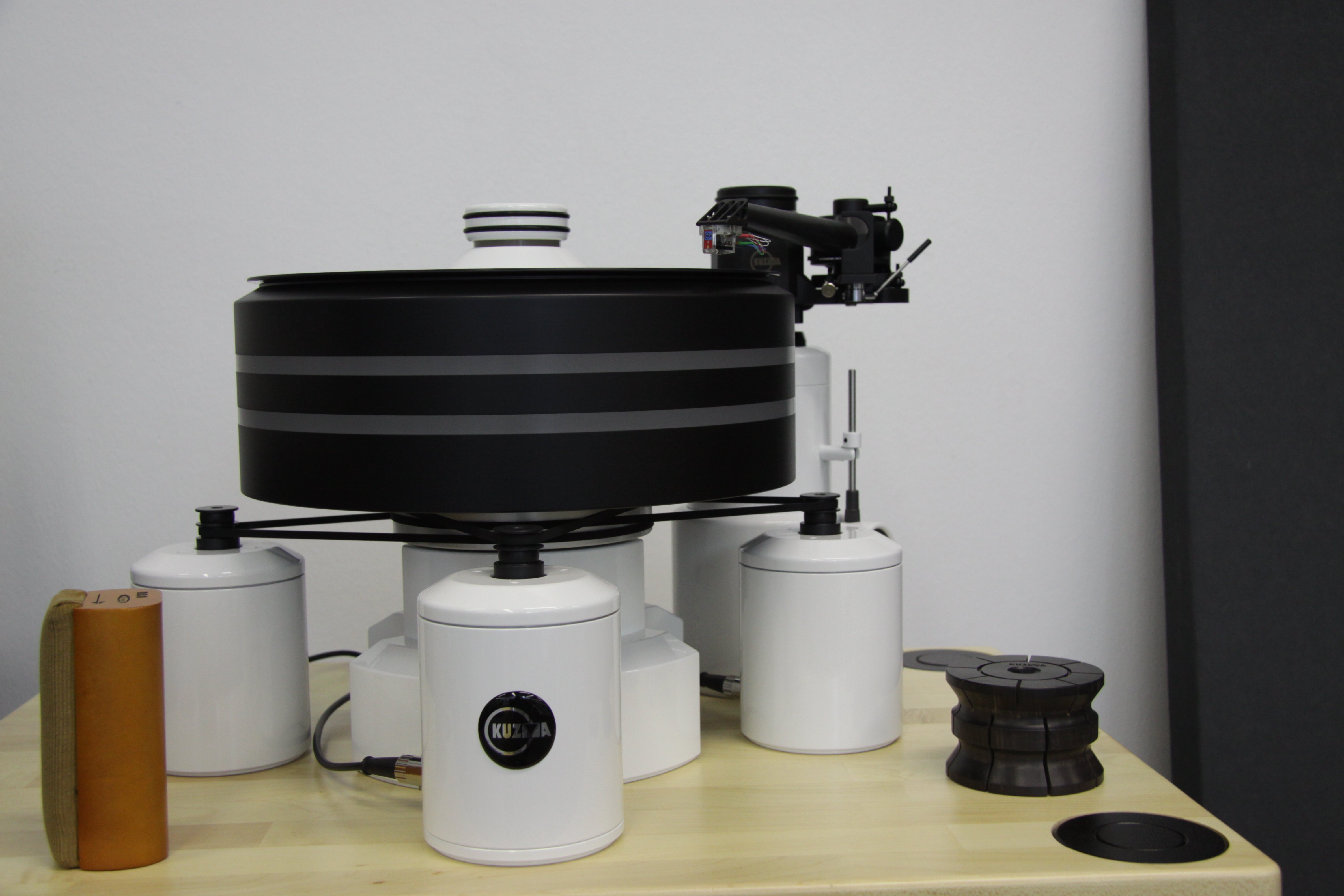

Stabi XL4 motor position Stabi XL4 motor pulley position Stabi XL towers No.1& No.3- without armboards Stabi XL VTA measuring clock PS XL2=4 rear view Stabi XL4 white

Mass 91 Kg
Platter mass 22 Kg
Platter material Aluminium& acrylic
Bearing type Ruby ball- inverted with resin/textile material
Shaft diameter 28 mm
Chassis/Levelling Brass/ No
Turntable levelling No
Motors 4 pc AC
External power supply Yes
Speeds 33, 45 rpm, 78rpm optional
Armboard Yes
VTA adjustment Precise VTA adjustment
No. of tonearms 1pc (+2 optional towers)
Max tonearm’s length -
Suspended No
Dimensions 450x450x300 mm
Finishes brass or black
Clamp Yes
Mat Yes
Lid No
Accessories Oil, Allen keys
Options Various armboards, tonearm towers( 14kg), XL4 kit
